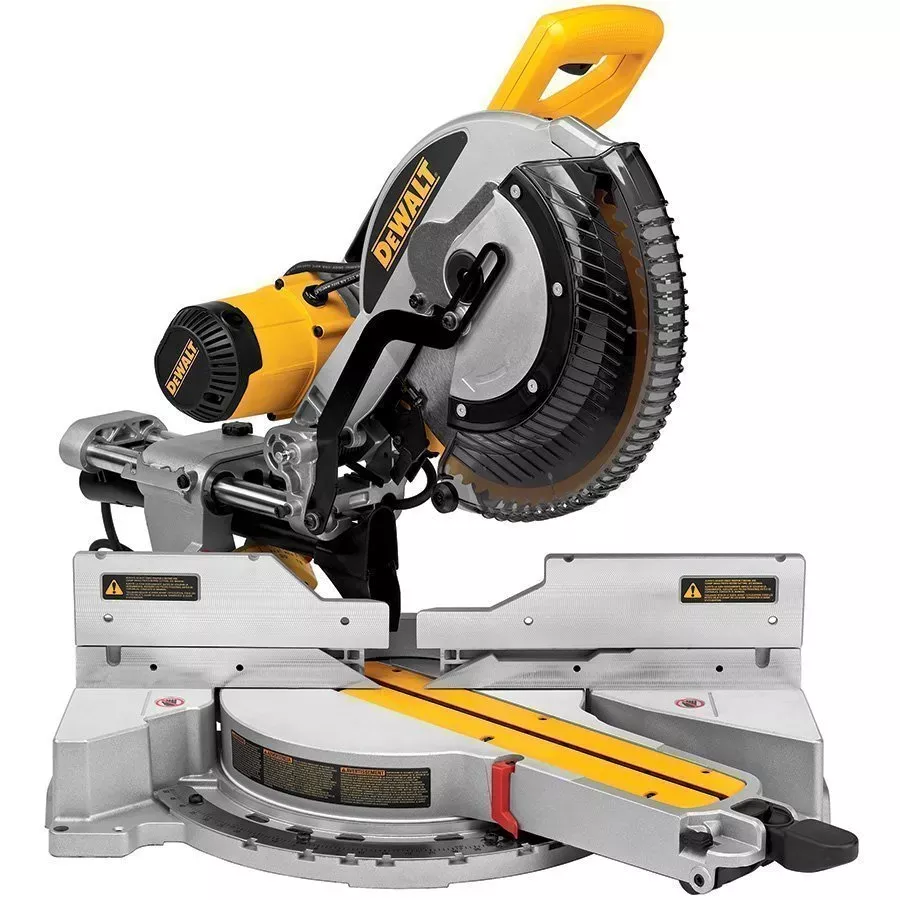

Take a tough miter saw applications with this 12″ Double-Bevel Sliding Compound Miter Saw. A 15 amp motor and integrated XPS crosscut positioning system for adjustment-free, accurate cut line indication, this tool is designed with a durable stainless-steel miter detent plate with cam lock.
- Dimensions – 35cm x 45cm x 25cm
- 1100 w motor designed for heavy duty applications
- Integrated CUTLINE blade positioning system provides adjustment free cut line indication for better accuracy and visibility
- Powerful 15 amp, 3,800 rpm motor delivers extended power and durability
- Super-efficient dust collection system captures over 75% of dust generated
- Tall sliding fences support crown molding up to 7-1/2″ nested and base molding up to 6-3/4″ vertically against the fence while easily sliding out of the way for bevel cuts
- Exclusive back fence design cuts up to 2×14 dimensional lumber at 90° and 2×10 at 45°
- Adjustable stainless-steel miter detent plate with 10 positive stops improves productivity and ensures cutting accuracy
- Miters 60° to the right and 50° to the left providing increased capacity
- Oversized bevel scale makes bevel angle adjustments accurate and easy
- Compact, lightweight design (58 lb) allows for easy transport and storage
- Cam lock miter handle with detent override deliver quick and accurate miter angles
- Dual horizontal steel rails with innovative clamping mechanism and linear ball bearings deliver an accurate, durable and compact saw
- Innovative gearbox and belt-drive design increases vertical cutting capacity
Applications
- Steel pipe cutting
- Cutting aerated concrete blocks, etc
- Cutting pallets with nails inside
- Plunge cutting for opening doors
- Cutting pipes and metal sections
- Cutting cable trays
- House building (floor and roof support)
- Window reconstruction
- Cutting crown molding vertically nested against fence
- Cutting base molding vertically against fence
- Cutting 2x material and precision cuts for woodworking
Specifications
- Accessories Included: Yes
- Arbor Size: 5/8″
- Bevel Capacity: 49°/49°
- Blade Bore: 1.18″
- Blade Diameter: 12″
- Blade Speed: 3800 rpm
- Color: Silver, Yellow
- Cord Length: 6′
- Cutter/Saw Wheel Diameter: 12″
- Cutting Capacity: 14″
- Depth: 470mm
- Disc Diameter: 12″
- Dust Collection: Yes
- Dust Extraction: Yes
- Max. Cutting Capacity (45°/45°): 2×10″
- Max. Cutting Capacity (45°/90°): 4×10″
- Max. Cutting Capacity (90°/45°): 4×10″
- Max. Cutting Capacity (90°/90°): 2×14″
- Max. Depth of Cut: 6.69″
- Max. Watts Out: 1675 w
- No Load Speed: 3800 rpm
- Number of Pieces: 5
- Possible Mitre Angles: 50°/60°
- Power Input: 1675 w
- Power Output: 960 w
- Power Source: Corded
- Height: 19.5″
- Length: 32.33″
- Width: 23″
- Weight: 56 lb
- Saw Blade Thickness: 0.1″
- Supplied in Storage Case Indicator: No
- Uncertainty K1 (Vibration): 1.5 m/s2
- Weight (Including Battery): 56 lb
- Warranty: 3 Years Limited Warranty
Includes
- (1) Blade Wrench
- (1) Dust Bag
- (1) Vertical Material Clamp
- (1) 12″ Carbide Blade
- (1) 12″ Miter Saw
