Description

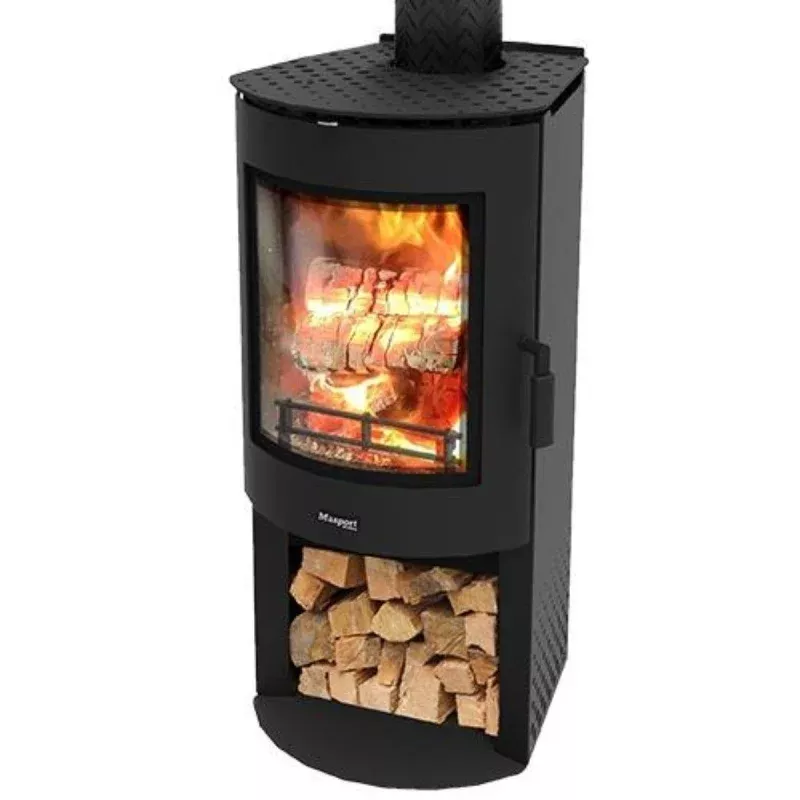

The ADENA WOODSTACKER adds convenience to an already sleek, curved design fitting of today’s modern home. This radiant fire will not only make a statement, but also keep your home warm while offering a convenient storage for your firewood.
Features:
- Designed to heat small to medium sized areas – up to 162m2
- 6mm radiant cooktop
- 6mm, durable steel firebox
- Lined with ceramic fire bricks and a steel baffle for efficient burning
- Handy storage space for wood
- Available without wood stacker (Check other Adena Model)
- 10-year extensive firebox warranty under normal use and service
- 1-year warranty on all internal fire parts
- Made and designed in New Zealand
Specifications
Specifications:
Dimensions:
481mm (W) x 536mm (D) x 1025mm (H)
Firebox: 265mm (W) x 325mm (D) x 410mm (H)
Clearance
The Masport Adena Freestanding Wood Fire now comes with a Rear Heat Shield and a Flue Shield, allowing for improved clearance.
Clearance for the Adena Fireplace is:
Rear: 120mm
Side: 400mm
Corner: 180mm
Manuals
Manuals:
Masport Adena Woodstacker Spec Sheet.pdf
Masport Wood Fire Installation Manual.pdf
Masport Wood Fire Owners Manual.pdf
Masport Installation Instructions for Adena Flue Shield.pdf
Masport Installation Instructions for Rear Heat Shield.pdf
Flue Options
To complete any wood heater installation a flue kit and flashing will be required. These are available for purchase as standard kits online which will suit straightforward, vertical, single-storey applications. Depending on your site specifics you may also need a hearth, or other components that arent available on our website.
We have heater experts available in store to give advice for wood heater installations, so if you have any questions call 1300 300 227 or drop into your local outlet.
Standard Flue Kit
Includes
SWH-6101
Anti-down draught hat SS
2 x 10 galvanised flue lengths
2 x 8 galvanised flue lengths
2 x 6 SS flue lengths
10 ceiling ring galvanised
2 x 6 black painted SS flue lengths
SS half shield
SWH-6136
Anti-down draught hat SS
2 x 10 galvanised flue lengths
2 x 8 galvanised flue lengths
4 x 6 SS flue lengths
10 ceiling ring galvanised
2 x 8 black painted SS mesh flue length
Standard Flashing
Suits
DFE108B
Metal roof, 170-355mm external flue
DNL108B
Tile roof, 175-300mm external flue
