Dimensions

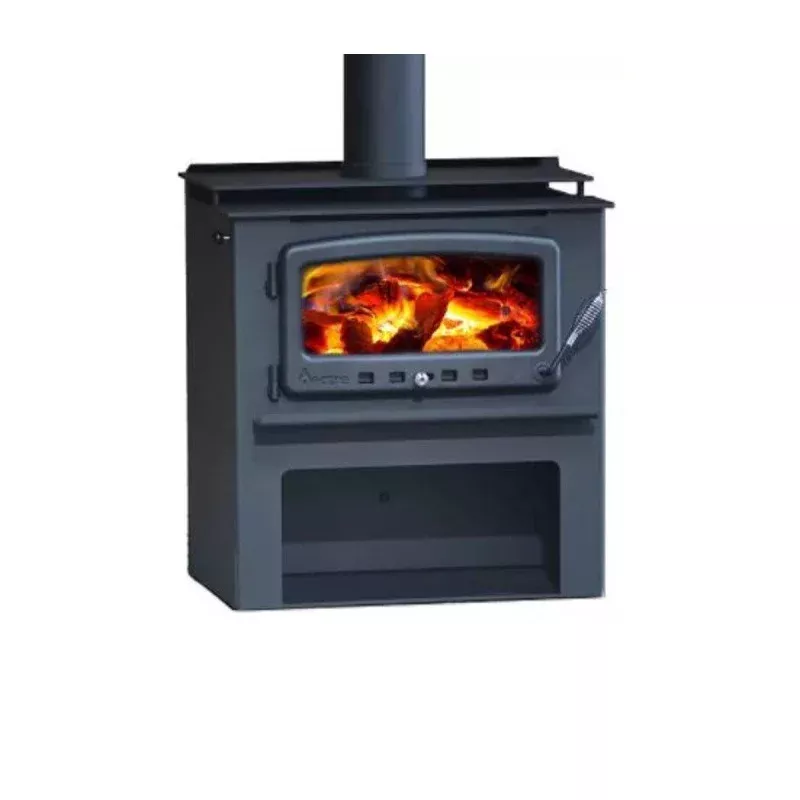

You’ll be captivated by the sights and crackling sounds of logs burning in the generously sized firebox. The Nectre Mk3 comes with a wood stacker base for added convenience and authentic visual effect. Not only it looks good but it also performs brilliantly.
- Black metallic paint finish
- Heats up to 270m2
- Standard 3-speed remote control fan
- Comes with a convenient woodstacker
Specifications
Dimensions:
750mm (w) x 792mm (h) x 627mm (d)
Heater Clearances
From Rear to Wall – 150mm (square to walls)
From Side to Wall – 400mm (square to walls)
From Rear Corner to Wall – 150mm (corner Installation)
Compliance
The Nectre Mk3 has been designed and manufactured to exceed the strict AS/NZS 4013 standards for emissions of 1.5g / kg of fuel burnt and efficiency of 60%.
Manuals
Nectre Mk 3 Installation Manual
Nectre Mk 3 Operation Manual
Flue Options
To complete any wood heater installation a flue kit and flashing will be required. These are available for purchase as standard kits online which will suit straightforward vertical single-story applications. Depending on your site specifics you may also need a hearth or other components that aren’t available on our website.
We have heater experts available in store to give advice for wood heater installations so if you have any questions call 1300 300 227 or drop into your local outlet.
Standard Flue Kit
Includes
SWH-6101
Anti-down draught hat SS
2 x 10″galvanised flue lengths
2 x 8″galvanised flue lengths
2 x 6″SSflue lengths
10″ceiling ring galvanised
2 x 6″black painted SS flue lengths
SS half shield
SWH-6136
Anti-down draught hat SS
2 x 10″galvanised flue lengths
2 x 8″galvanised flue lengths
4 x 6″SSflue lengths
10″ceiling ring galvanised
2 x 8″black painted SS mesh flue length
Standard Flashing
Suits
DFE108B
Metal roof 170-355mm external flue
DNL108B
Tile roof 175-300mm external flue
