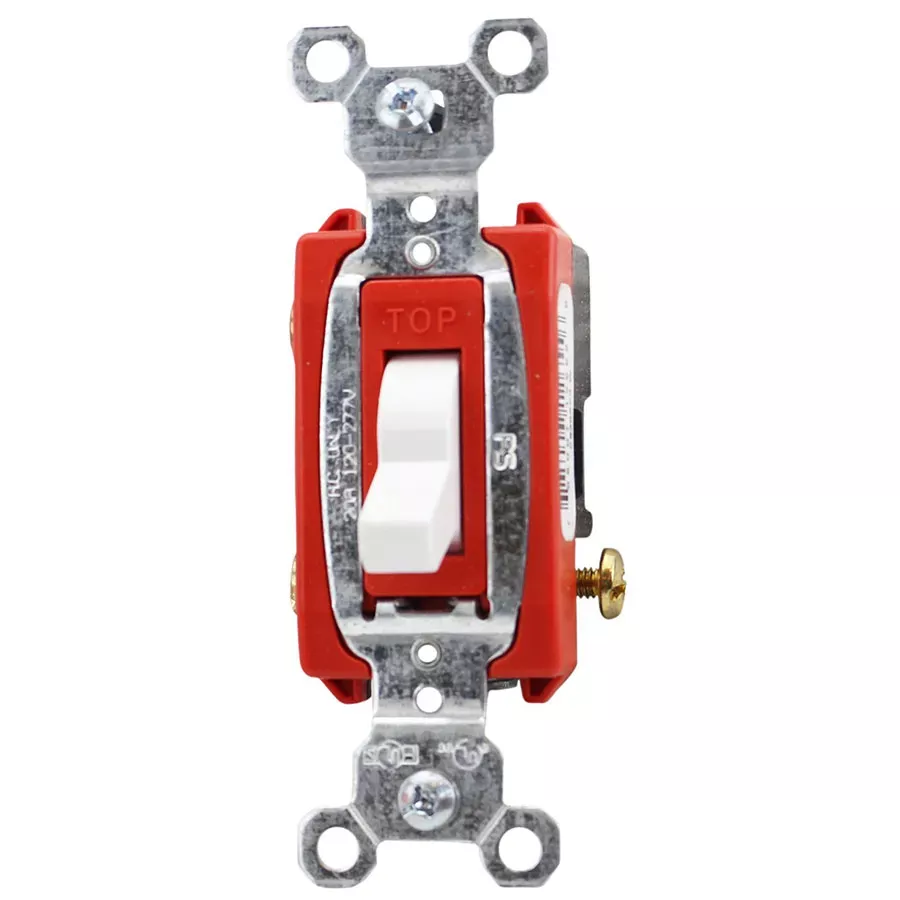

Pass & Seymour Commercial Specification Grade Switch single pole switch in white with side wire is made with high strength thermoplastic polycarbonate toggle which resists breaking and chipping under heavy abuse. Its one-piece brass alloy contact arm allows for reliable electrical performance. Also the one-piece steel strap with integral ground is plated for corrosion resistance. The heavy-duty toggle bumpers allow for a smooth and quiet operation. 20amp 120/277V.
- Back body made of glass-reinforced nylon
- Locking support provides resistance to face and back body separation
- Available with side wire or external screw-pressure-plate back and side wire models capable of accepting 14 – 10 AWG copper or copper-clad wire
- Cam designed for fast make with positive break action to minimize arcing and prolong switch life
- Oversized silver alloy contacts for longer dependable switch life
- Tri-drive terminal and mounting screws
- Color: White
- Type: Side Wire
- Duty: Heavy Duty
- Number of Poles: 1
- Amps: 20A
- Volts: 120/277VAC
- Volts (AC): 120/277
- Grade Type: Commercial
- Depth: 1.073″
- Height: 3.281″
- Width: 1.320″
